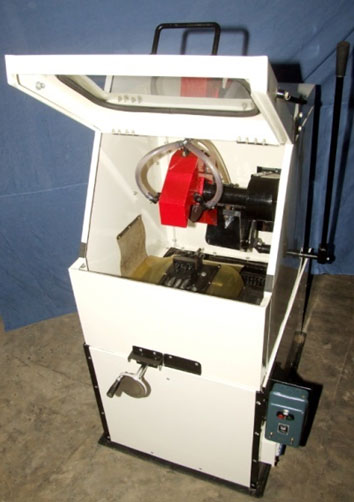

Working on 440 volts, AC main supply with coolant tank made of S.S. for non rusting purpose of sufficient capacity. The chop type cut off wheel machine is suitable for quick and clean cutting of metallographic specimen from rods & tubes etc.
Abrasive cutter is rugged, sturdy and designed to cut Metallurgical Samples to optimal quality consistently and safely. Cutting Wheel spindle is connected with motor shaft by pulley and belt mechanism. The movement of cutting wheel towards the specimen is applied by handle fixed with motor base pivot spindle and the cutter unit is balanced by springs for smooth chop type movement.

Features:-

X-Y Movement Vice is made up of M.S, Specially designed.
Coolant circulation System is provided with suitable filtering arrangement.
Light attachments system is provided for clean and accurate cutting of samples.
Heavy Duty motor is provided 5H.P, 3 Phase.
Heavy Duty motor is provided 5H.P, 3 Phase.

Technical Data:-

Operation:- Manually by moving motor to cut the sample.
Cutting Operation:- By manual cutt-off wheel in chop type procedure.
Cutting Motor Power:- 5 H.P,3 Phase.
Coolant Motor Power:- Tullu Pump.
Cutt-Off Wheel Speed:- 2000-2800 rpm.
Dimensions:- 600mm W x 1000mm D x 1750mm H. (Approx.).
